Maximum Demand Meter
본문

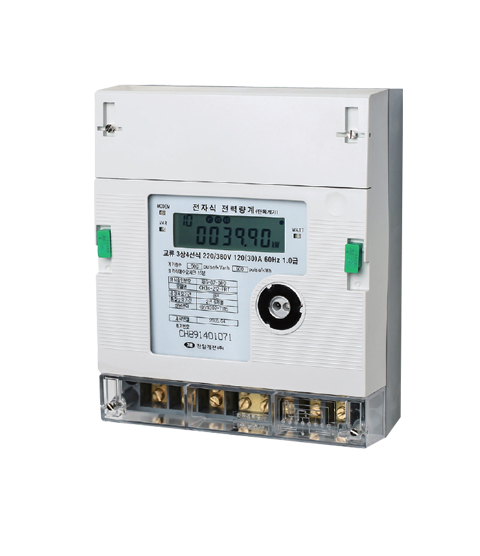

Maximum Demand Meter
This meter is suitable for measurement of meximum demand in educational, Industrial of Apartment and customers using Transformer jointly.
FEATURE
· Measured Quantity : Active energy, Reactive Energy, Maximum Demand and Power Factor.
· Load Profile : Max. 90 days (15min interval, 2ch)
· Billing data : TOU metering
· Communication : Optical port(IEC 62026-1)
· Power Disturbance : Non-volatile Memory, RTC Backup Battery.
· Self-Diagnosis : Memory error, Battery error, Power failure, etc.
· Operation by simple setting
Specification
| Model | CH34-205-STD | CH34-212-FRT | |
|---|---|---|---|
| Supply System | 3P4W | 3P4W | |
| Voltage | 220/380V | 220/380V | |
| Current | 5(2.5)A | 120(30)A | |
| Frequency | 60Hz | 60Hz | |
| Accuracy | 1.0 | 1.0 | |
| Guide | There is no Guide | ||
| Display Table | There is no Display Table | ||
| dimensions | dimensions | dimensions | |
