E-Type Meter for Low Voltage
본문

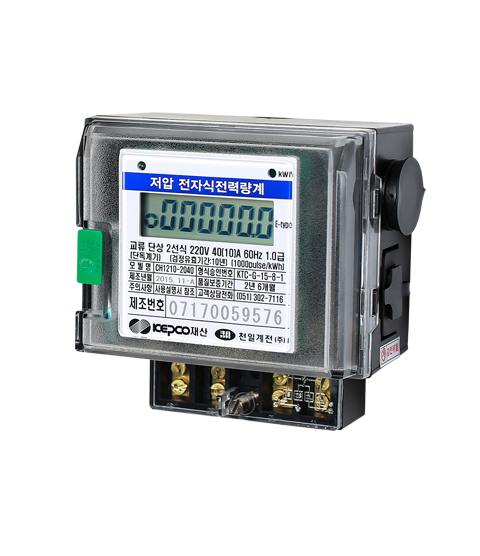

E-Type Meter for Low Voltage
Economic electric watt-hour meter suitable for space efficiency and improvement of beauty due to small size and elegant appearance
FEATURE
· Measured Quantity : Active energy & Reactive Energy (5 digit integer and 1 digit fixed point)
· Billing Data : Max. 31 days on 1 weeks cycle
· Self-Diagnosis : memory error etc.
· Communication : RS485 communication ready(Option)
· Backup Battery : Built-in Battery for meter backup supply in Black out, RTC Backup Battery(Option)
Specification
| Model | CH1210-2040VE (상하형) | CH1210-2040 (밑면형) | |
|---|---|---|---|
| Supply System | 1P2W | 1P2W | |
| Voltage | 220V | 220V | |
| Current | 40(10)A | 40(10)A | |
| Frequency | 60Hz | 60Hz | |
| Accuracy | 1.0 | 1.0 | |
| Guide | There is no Guide | ||
| Display Table | There is no Display Table | ||
| dimensions | dimensions | dimensions | |
