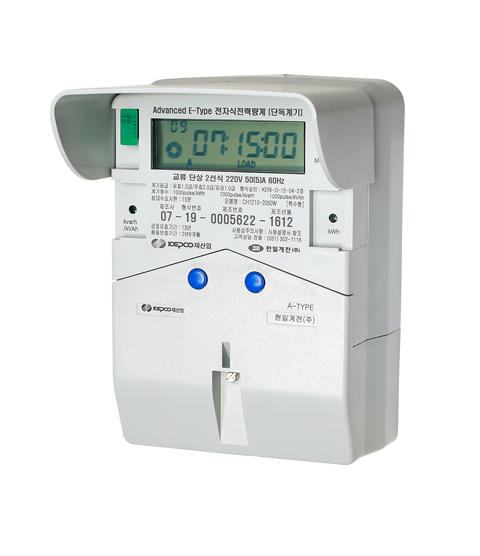

Advanced E-type Meter for Low Voltage



Advanced E-Type meter provides with bi-directional measurement and is available to use in outdoor without any protecive device.



FEATURE

· Measured Quantity : Active energy, Reactive Energy, Maximum Demand and Power Factor.
· Load Control : Built-in Relay(Max. 90A), Events registration, Remote/Local/Manual control, Relay status displaying
· Load Profile : Max. 65days
· Billing Data : Bi-directional & TOU Metering (Max. 3-tariffs), Power Disturbance : Non-volatile Memory, RTC Backup Battery
· Self-Diagnosis : memory error, battery error, power failure, reverse meter connection and so on. Support directly to load control, limit over current and theft protection
· Communication : AMR & OMR Ready
· Instrumentation : instantaneous THD for the energy quality, average voltage, average current of each phase and save instantaneous voltage THD for past 3 days
· Housing : Non-flammable polycarbonate, IP54 protection grade against dust and water
