Standard Meter for Low Voltage
본문

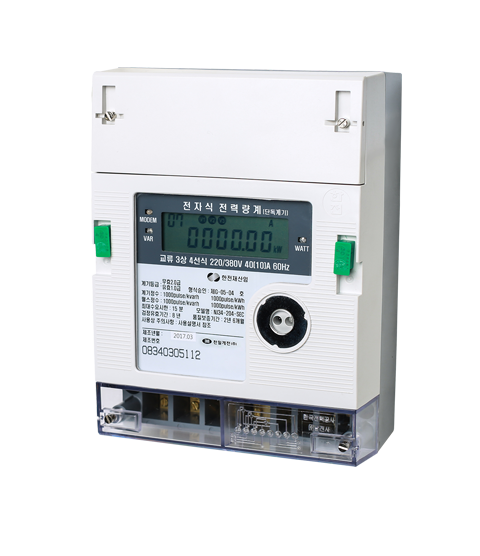

Standard Meter for Low Voltage
As this Standard meter is able to measure the active and reactive power, it is also suitable for AMI system.
FEATURE
· Measured Quantity : Active energy, Reactive Energy, Maximum Demand and Power Factor.
· Billing Data : TOU Metering (Max. 2-Tariffs)
· Load Profile : Max. 90days
· Power Disturbance : Non-volatile Memory, RTC Backup Battery.
· Self-Diagnosis : Memory error, Battery error, Power failure, etc.
· Communication : AMR & OMR Ready
Specification
| Model | CH12-204-THI | CH12-212-STD | CH12-205-STD | CH34-204-FRT | CH34-212-FRT | CH34-205-STD | |
|---|---|---|---|---|---|---|---|
| Supply System | 1P2W | 1P2W | 1P2W | 3P4W | 3P4W | 3P4W | |
| Voltage | 220V | 220V | 220V | 220/380V | 220/380V | 220/380V | |
| Current | 40(10)A | 120(30)A | 5(2.5)A | 40(10)A | 120(30)A | 5(2.5)A | |
| Frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | |
| Accuracy | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
| Guide | There is no Guide | ||||||
| Display Table | There is no Display Table | ||||||
| dimensions | dimensions | dimensions | dimensions | ||||
