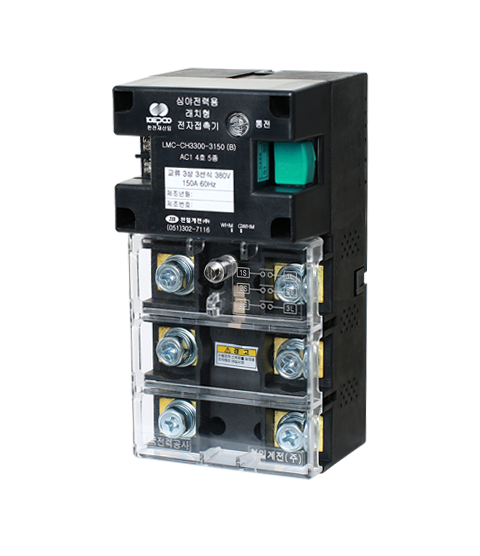

Latch Type Electromagnetic Contactors for Night Thermal Storage Power Service
Electromagnetic contactor used to supply power to the load during midnight time slot with night-time rate charged
FEATURE
· Magnetic contactor having latch structure
· Power consumption decreased by latch structure.
· Variety of connection methods, such as T/S, WHM, GWHM etc.
· Manual transfer switch against malfunction
· Terminal protection cover for the safety of workers.
Specification
| Model | LMC-CH1200-2080A | LMC-CH3300-3080A | LMC-CH3300-3080B | LMC-CH1200-2150A | LMC-CH1200-2150B | LMC-CH3300-3150A | LMC-CH3300-3150B | LMC-CH1200-2220A | LMC-CH1200-2220B | |
|---|---|---|---|---|---|---|---|---|---|---|
| Supply System | 1P2W | 3P3W | 3P3W | 1P2W | 1P2W | 3P3W | 3P3W | 1P1W | 1P1W | |
| Voltage | 220V | 380V | 380V | 220V | 220V | 380V | 380V | 220V | 220V | |
| Current | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | |
| Current | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V | |
| Frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz | |
| Number of contactor poles | 2Poles | 2Poles | 2Poles | 2Poles | 2Poles | 62Poles | 2Poles | 2Poles | 2Poles | |
| Ringing Circuit | T/S or WHM | T/S or WHM | WHM or GWHM | T/S or WHM | WHM or GWHM | T/S or WHM | WHM or GWHM | T/S or WHM | WHM or GWHM | |
| Guide | There is no Guide | |||||||||
| Display Table | There is no Display Table | |||||||||
| dimensions | dimensions | dimensions | dimensions | |||||||
